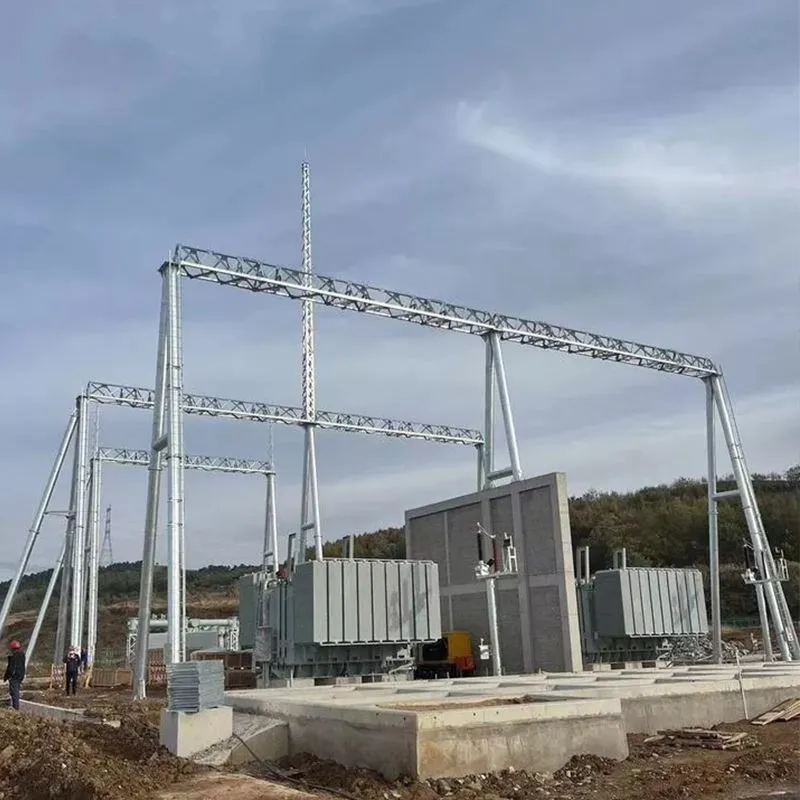

Substation Steel Structure Support
Product Overview
The substation steel structure support is a dedicated load-bearing structural system for electrical substations. The main structure is made of Q355 high-strength steel, providing significantly higher compressive capacity compared to traditional concrete structures, and is suitable for large-span and lightweight structural design requirements.

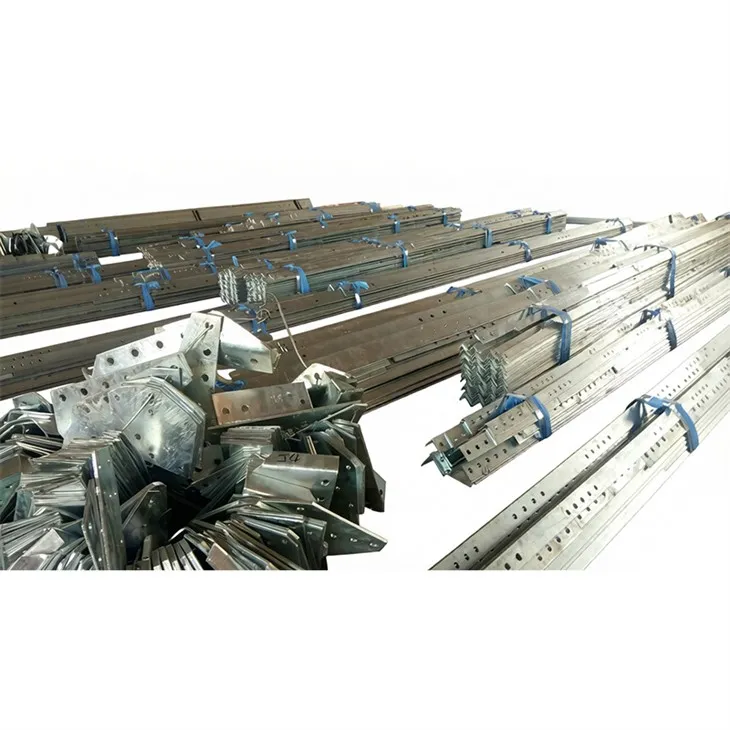

All components are manufactured with strict dimensional accuracy control. Parameters such as bending deflection, length tolerance, and base bolt hole positioning are strictly controlled within industry standards. Weld seams are uniform and defect-free, and the hot-dip galvanized coating thickness is ≥65μm with no red rust, zinc peeling, or zinc lumps. The corrosion protection service life can reach up to 40 years. High-strength galvanized bolts are used to ensure mechanical performance and tightening torque compliance with design specifications.
Core Product Features
- High-strength Q355 steel ensures excellent load-bearing capacity for substation heavy-duty applications;
- High machining precision with strictly controlled hole positioning and dimensional tolerance for accurate on-site installation;
- Advanced welding and hot-dip galvanizing process ensures strong anti-corrosion and anti-rust performance for outdoor environments;
- Stable structural system with strong wind and seismic resistance, suitable for long-term safe operation in substations.
Our substation steel structure support solutions are engineered to ensure structural stability and long-term reliability in power transmission infrastructure.
Application Fields
- High-voltage and low-voltage substations;
- Power distribution structural frameworks;
- Power transmission support structures;
- Substation equipment supporting systems;
- Electrical infrastructure engineering projects.
The equipment is widely used in power system construction requiring durable and high-strength structural support.
Enterprise Quality Control Advantages
The company implements a five-level full-process quality control system covering sourcing, supply chain, production, and delivery. Incoming raw materials are strictly inspected, and the entire production process is under continuous quality supervision. Each product undergoes 100% inspection before shipment.
Third-party inspection is accepted without affecting payment cycles. Steel structure manufacturing strictly follows welding, galvanizing, and dimensional accuracy standards, aligned with State Grid engineering acceptance requirements to ensure reliable quality assurance.
Product Specifications
|
Parameter Item |
Specification Details |
|
Main Material |
Q355 high-strength structural steel |
|
Galvanized Coating Thickness |
≥65μm |
|
Design Service Life |
40 years |
|
Component Accuracy |
Bending deflection ≤L/1500 and ≤5mm, length tolerance ≤3mm |
|
Connection Parts |
Hot-dip galvanized high-strength bolts |
