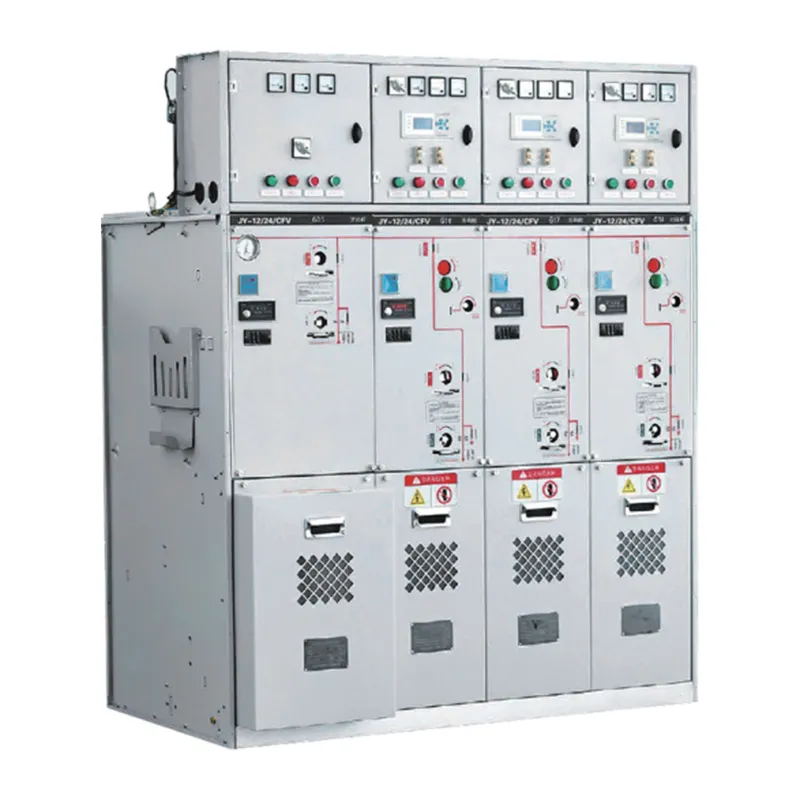

High Voltage Electrical Switchgear
Product Overview
High voltage electrical switchgear is a core control and protection solution used in power systems operating at voltage levels of 3.6kV and above. The product range includes mainstream categories such as metal-enclosed switchgear, gas insulated switchgear (GIS), and prefabricated substations. These systems provide comprehensive functions including circuit switching, overload protection, fault isolation, and system regulation.
The high voltage electrical switchgear series is manufactured in strict accordance with GB/T and DL/T national and industry standards. The cabinet structure adopts aluminum-zinc coated steel plates and powder-coated cold-rolled steel materials, delivering strong structural stability and excellent insulation performance. An advanced interlocking protection system is built in to ensure safe and reliable operation.
Core Product Features
- Complete voltage level coverage suitable for medium-voltage, high-voltage, and ultra-high-voltage grid applications;
- Integrated system design enables complete power distribution and protection functions without additional supporting equipment;
- Excellent protective performance with resistance to electric arc damage and environmental aging, suitable for long-term indoor and outdoor use;
- Standardized structural design compatible with power grid connection requirements, allowing convenient installation and commissioning.
Our high voltage electrical switchgear solutions are engineered for stable operation, high safety standards, and efficient power distribution management in demanding electrical environments.
Application Fields
- Power plants;
- Transmission and substation hubs;
- Industrial and mining enterprises;
- Large industrial parks;
- Urban municipal power distribution systems;
- Solar and wind renewable energy stations.
The equipment is widely applied in various high-voltage power distribution scenarios requiring reliable electrical protection and system control.
Enterprise Production & R&D Advantages

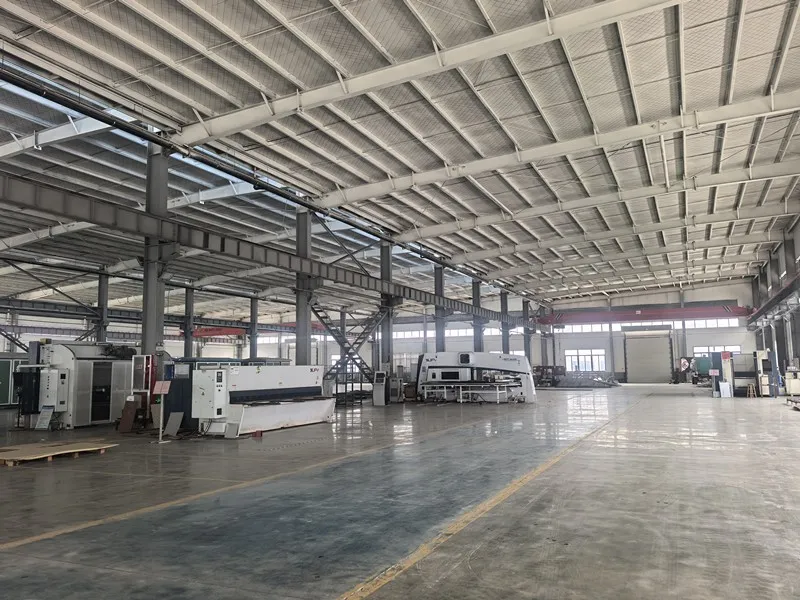

The company owns a professional independent R&D team with capabilities in new product development, equipment upgrading, and customized optimization. A large self-owned manufacturing park supports a monthly production capacity of up to 200 sets of power distribution equipment.
By adopting standardized modular production methods and advance stocking of commonly used electrical components, order delivery efficiency is significantly improved. The company has long-term cooperation experience with many well-known enterprises and possesses strong capabilities in large-scale project supply and complete power distribution solution integration. Bulk order preferential policies are also supported.
Product Specifications
|
Parameter Item |
Specification Details |
|
Applicable Voltage |
3.6kV–40.5kV, 72.5kV–252kV, and ≥363kV Full Voltage Range |
|
Equipment Types |
Metal-Enclosed Switchgear, GIS, Prefabricated HV/LV Substations |
|
Standards |
GB/T 3906-2020, GB/T 7674-2020, DL/T 404-2018 |
|
Core Functions |
Circuit Switching, Overload Protection, Fault Isolation, System Regulation |
|
Cabinet Material |
Aluminum-zinc coated steel plate, powder-coated cold-rolled steel |
