Metering Distribution Cabinet
Product Overview
The metering distribution cabinet, also known as an energy metering cabinet, is a dedicated core device used in power systems for accurate electricity measurement and tariff settlement. It is strictly regulated by utility authorities due to its role in electricity trading and billing.
The system is divided into high-voltage metering cabinets and low-voltage metering cabinets. High-voltage types adopt high-voltage metering configurations with PTs and current transformers, while low-voltage types include direct connection and CT-based connection designs. Structural options include integrated type, split type, fixed type, and withdrawable type configurations.
The metering distribution cabinet is manufactured in strict accordance with GB/T 16934-2013 standards for energy metering cabinets, supplemented by DL/T 448-2016 industry standards. It provides high measurement accuracy and stable performance, making it an essential device for electricity trade settlement.
Core Product Features
- High-precision metering system with professionally calibrated components meeting utility acceptance standards;
- Full voltage level coverage suitable for different load capacities and metering scenarios;
- Multiple structural options including fixed, withdrawable, integrated, and split designs for easy installation and maintenance;
- Excellent sealing and protection performance with anti-tamper and anti-theft design ensuring safe and compliant operation.
Our metering distribution cabinet solutions are designed to ensure accurate energy measurement and reliable billing performance in power systems.
Application Fields
- Power plants;
- Substation grid connection metering points;
- Large industrial facilities;
- Commercial buildings and shopping malls;
- Residential communities;
- Schools and public infrastructure;
- Photovoltaic power stations;
- EV charging stations;
- Temporary construction site power metering systems.
The equipment is widely used in utility metering and electricity settlement scenarios across multiple industries.
Enterprise R&D & Project Integration Advantages
The company has a professional electrical engineering design team capable of customizing internal layout and component configuration of metering cabinets according to utility standards and grid requirements.

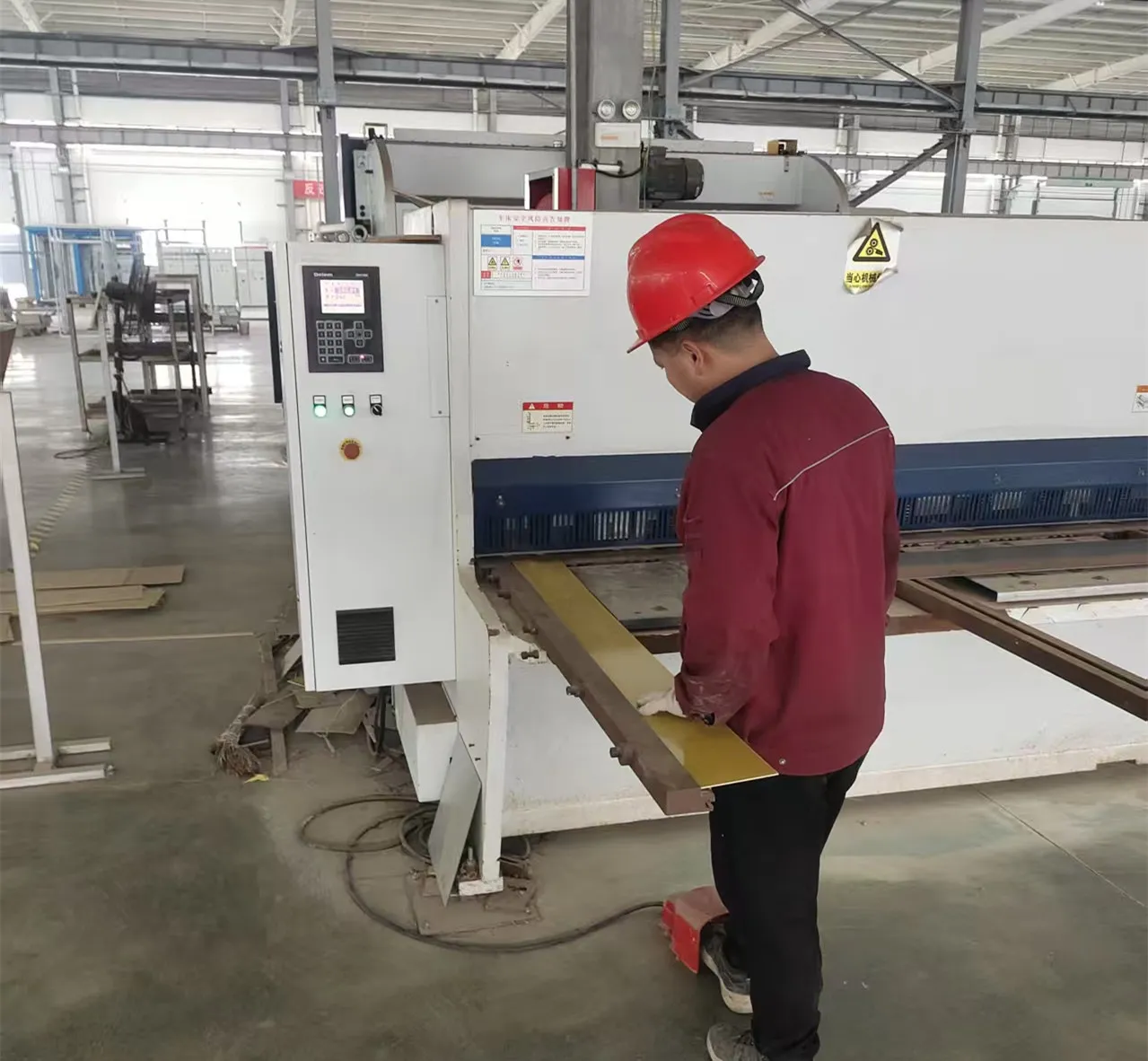

With 11 years of experience in power distribution manufacturing, the company is familiar with regional grid acceptance requirements. It supports drawing optimization, bidding document preparation, and provides one-stop integrated supply of high/low voltage metering and distribution systems for complete substation projects. Bulk engineering projects can be delivered with full system solutions.
Product Specifications
|
Parameter Item |
Specification Details |
|
Product Categories |
High Voltage Metering Cabinet, Low Voltage Metering Cabinet |
|
Connection Method |
Low voltage: direct connection, CT-based connection |
|
Cabinet Structure |
Integrated type, split type; fixed type, withdrawable type |
|
Standards |
GB/T 16934-2013, DL/T 448-2016, GB/T 7251 |
|
Core Function |
Accurate energy metering, electricity billing, grid interface metering |
