Fixed Type Switchgear
Product Overview
Fixed type switchgear is a classic category of low-voltage switchgear equipment, designed for AC power systems up to 1000V and DC systems up to 1500V. The representative model is the GGD fixed-type cabinet.

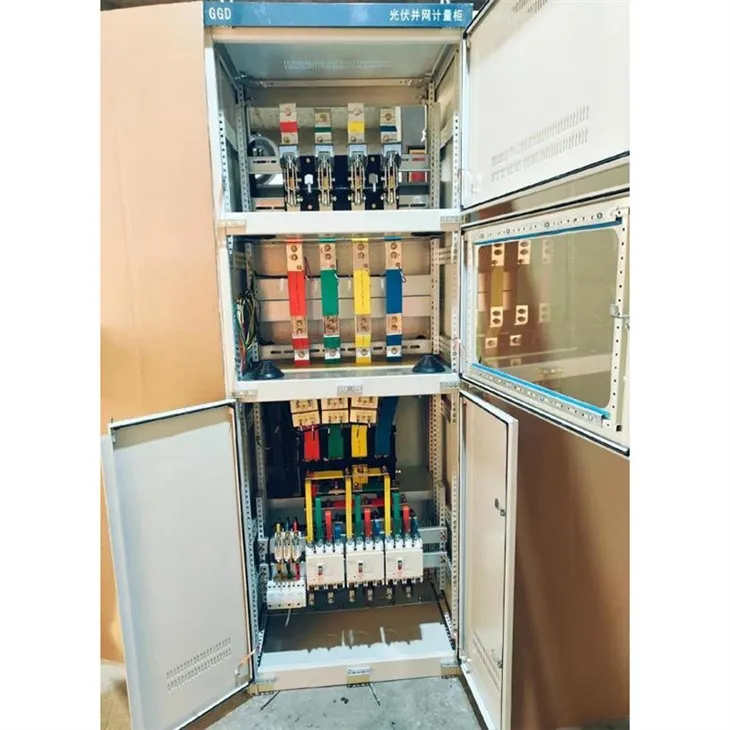

The cabinet frame is fabricated from welded cold-rolled steel sheets, with standard dimensions of 2200mm height, 600/800/1000mm width, and 600/800mm depth. Internally, it is divided into a main busbar chamber, functional unit chamber, and cable chamber. The rated insulation voltage is 660V/1000V, and the main circuit operating voltage is 400V. The enclosure adopts aluminum-zinc coated steel plates with powder-coated cold-rolled steel treatment, offering high mechanical strength and stable operation, making it a cost-effective solution for budget-sensitive projects.
Core Product Features
- Rigid fixed structure with high mechanical strength, suitable for long-term stable load operation;
- Independent compartment design improves safety, wiring organization, and maintenance convenience;
- Wide current withstand range, suitable for different sizes of power distribution loads;
- Mature structure with low cost, ideal for large-scale conventional distribution projects.
Our fixed type switchgear is widely used in stable-load power distribution systems where reliability and cost efficiency are equally important.
Application Fields
- Small and medium-sized factory power distribution systems;
- Residential community substations;
- General industrial workshops;
- Commercial building lighting distribution systems;
- Mining and industrial enterprises with stable load requirements;
- Cost-sensitive infrastructure projects.
The equipment is widely applied in conventional low-voltage distribution scenarios requiring stable and economical solutions.
Enterprise Order Delivery & Customization Advantages

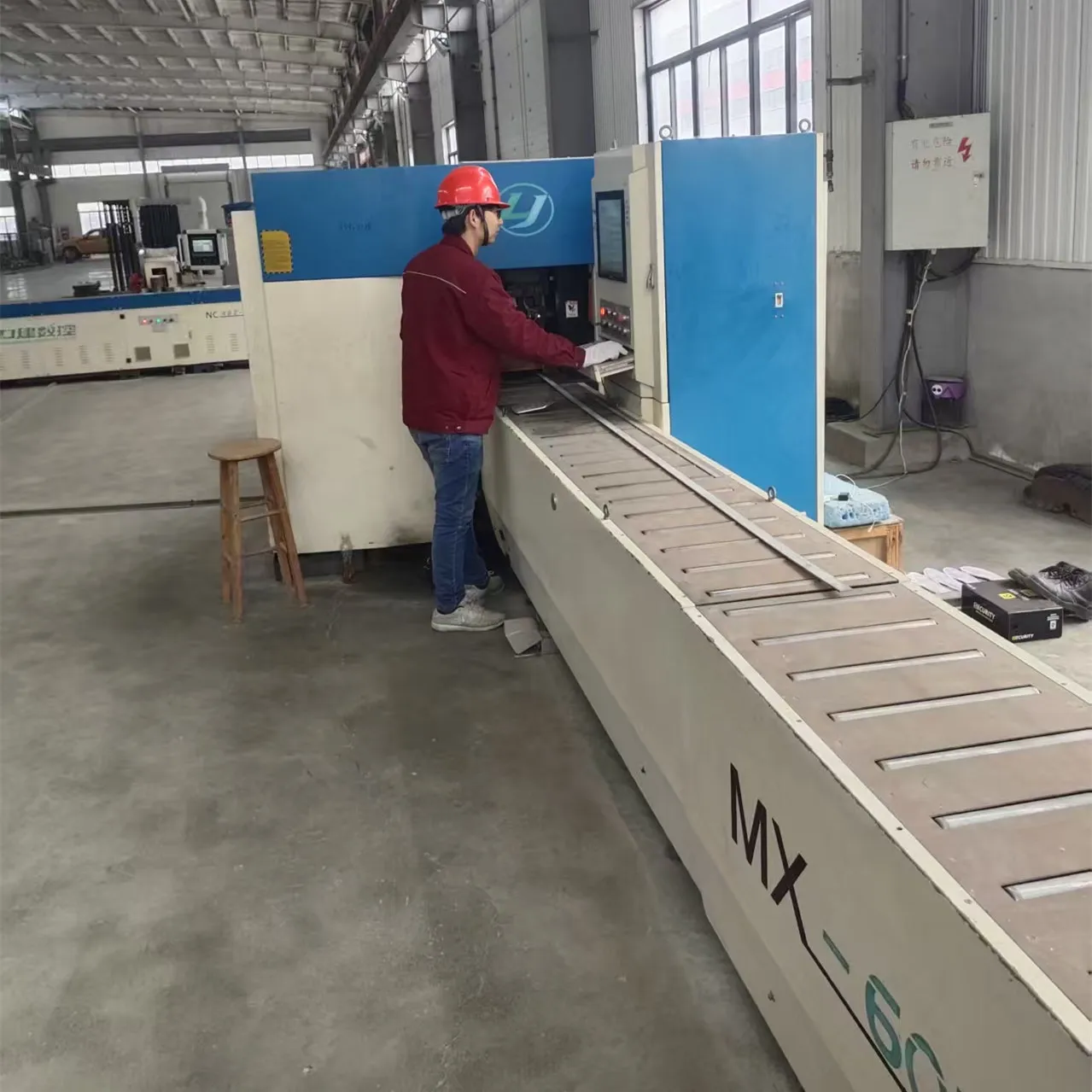

The company maintains safety stock of commonly used electrical components and relies on standardized modular production to ensure on-time delivery.
Project execution includes drawing optimization, construction progress management, and timely coordination of on-site changes. Bulk orders enjoy exclusive pricing advantages, and mixed-model purchasing within a single order is supported to flexibly meet project procurement needs.
Product Specifications
|
Parameter Item |
Specification Details |
|
Representative Model |
GGD Fixed Type Low Voltage Switchgear |
|
Standard Dimensions |
Height 2200mm; Width 600/800/1000mm; Depth 600/800mm |
|
Rated Insulation Voltage |
660V, 1000V |
|
Rated Operating Voltage |
Main circuit 400V, auxiliary circuit AC220V/DC220V |
|
Cabinet Material |
Aluminum-zinc coated steel plate, powder-coated cold-rolled steel |
|
Structural Division |
Main busbar chamber, functional unit chamber, cable chamber |
