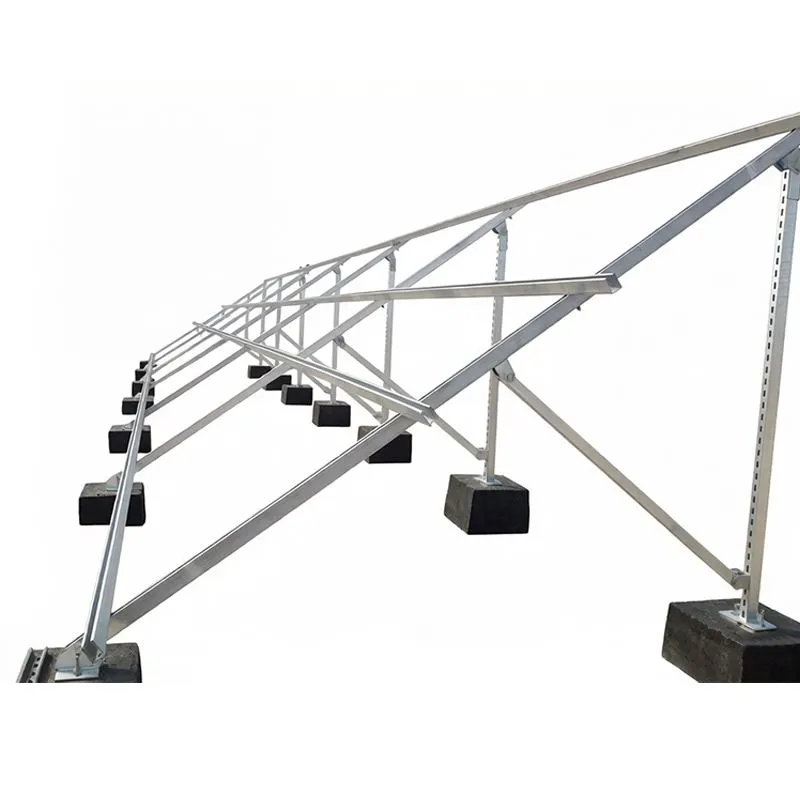

PV Steel Structure Bracket
Product Overview
The PV steel structure bracket is a load-bearing support system specifically designed for photovoltaic power plants. It is manufactured using Q235B/Q355B hot-dip galvanized steel with precision processing. The structural design is optimized according to the installation tilt angle and orientation requirements of PV modules, making it suitable for complex terrains such as mountains, deserts, agricultural PV projects, and rooftop installations.
The PV steel structure bracket features high standardization and strong compatibility, supporting both aluminum-frame crystalline silicon modules and double-glass crystalline silicon modules. It offers wind resistance up to 40m/s, and the hot-dip galvanized anti-corrosion treatment provides a service life of up to 25 years without frequent maintenance, making it a key structural component for photovoltaic power plants.
Core Product Features
- Standard modular design enables mass production, cost control, and wide adaptability;
- Strong terrain adaptability, suitable for mountains, plains, and hills without damaging native vegetation;
- Hot-dip galvanized anti-corrosion treatment ensures long-term outdoor durability with excellent resistance to corrosion and aging;
- Installation angle can be adjusted according to local latitude to improve power generation efficiency.
Our PV steel structure bracket solutions are engineered to provide stable mechanical support and optimized energy output for photovoltaic systems.
Application Fields
- Mountain photovoltaic power stations;
- Desert solar power plants;
- Agricultural PV complementary projects;

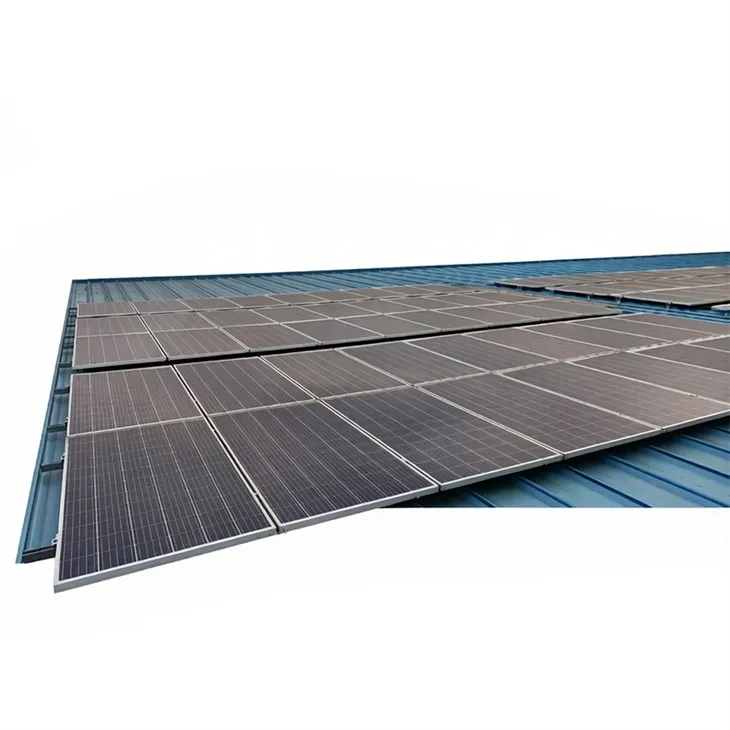

- Commercial and industrial rooftop PV systems;
- Residential distributed photovoltaic installations.
The equipment is widely used in various photovoltaic power generation projects requiring reliable structural support systems.
Enterprise Comprehensive Strength Advantages

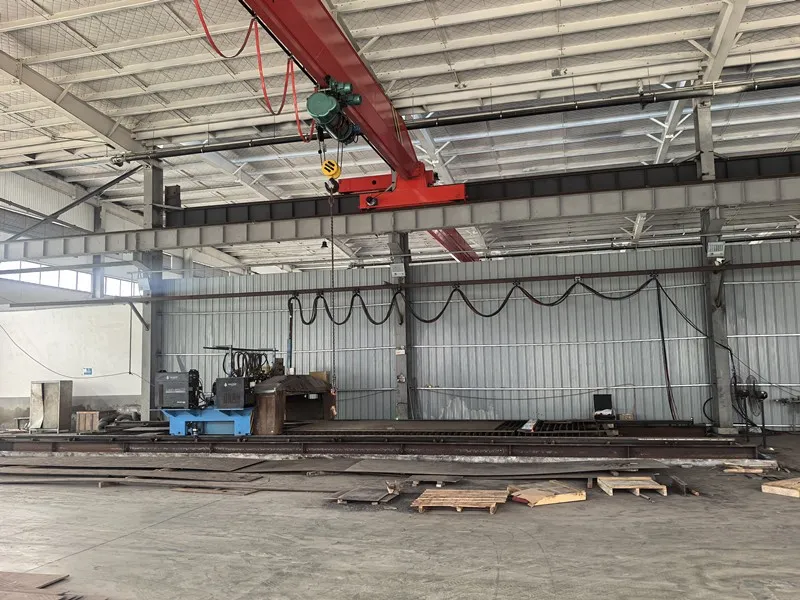

The factory has been deeply engaged in the steel structure industry for 11 years, with a 300-acre industrial park and a 200,000㎡ workshop area. The monthly steel structure production capacity reaches 2,000 tons.
A professional R&D and design team is capable of customized optimization based on terrain conditions, wind load requirements, and module specifications. The company has long-term strategic cooperation with well-known domestic enterprises and has strong capability in large-scale PV bracket supply and turnkey project support. CNC intelligent manufacturing processes ensure high precision components and excellent on-site installation compatibility.
Product Specifications
|
Parameter Item |
Specification Details |
|
Main Material |
Q235B, Q355B hot-dip galvanized steel |
|
Wind Resistance Level |
40m/s |
|
Design Lifespan |
25 years |
|
Compatible Modules |
Aluminum-frame crystalline silicon modules, double-glass crystalline silicon modules |
|
Installation Feature |
South-facing installation, tilt angle adjusted to local latitude |
